A Go to Symbol Contributor helps the user to navigate to any PSI element by its name.

Reference: Go to Class and Go to Symbol

13.1. Define a Helper Method for Generated PSI Elements ​

To specify how a PSI element looks like in the Go To Symbol popup window, Structure tool window, or other components, it should implement getPresentation(). This method gets defined in the utility class SimplePsiImplUtil, and the parser and PSI classes must be regenerated. Add the following method to SimplePsiImplUtil:

java
public static ItemPresentation getPresentation(final SimpleProperty element) {
    return new ItemPresentation() {
        @Nullable
        @Override
        public String getPresentableText() {
            return element.getKey();
        }

        @Nullable
        @Override
        public String getLocationString() {
            return element.getContainingFile().getName();
        }

        @Nullable
        @Override
        public Icon getIcon(boolean unused) {
            return SimpleIcons.FILE;
        }
    };
}

13.2. Update Grammar and Regenerate the Parser ​

Now add the SimplePsiImplUtil.getPresentation() to the property methods definition in the Simple.bnf grammar file by replacing the property definition with the lines below. Don't forget to regenerate the parser after updating the file! Right-click on the Simple.bnf file and select Generate Parser Code.

java
property ::= (KEY? SEPARATOR VALUE?) | KEY {
  mixin="org.consulo.sdk.language.psi.impl.SimpleNamedElementImpl"
  implements="org.consulo.sdk.language.psi.SimpleNamedElement"
  methods=[getKey getValue getName setName getNameIdentifier getPresentation]
}

13.3. Define a Go to Symbol Contributor ​

To enable the simple_language_plugin to contribute items to Navigate | Class..., File..., Symbol... lists, subclass ChooseByNameContributor to create SimpleChooseByNameContributor:

java
package org.consulo.sdk.language;

import consulo.annotation.component.ExtensionImpl;
import consulo.ide.navigation.ChooseByNameContributorEx;
import consulo.language.psi.scope.GlobalSearchScope;
import consulo.language.psi.stub.IdFilter;
import consulo.navigation.NavigationItem;
import consulo.project.Project;
import consulo.util.collection.ContainerUtil;
import org.consulo.sdk.language.psi.SimpleProperty;

import jakarta.annotation.Nonnull;
import jakarta.annotation.Nullable;

import java.util.List;
import java.util.Objects;
import java.util.function.Predicate;

@ExtensionImpl
final class SimpleChooseByNameContributor implements ChooseByNameContributorEx {

  @Override
  public void processNames(@Nonnull Predicate<String> processor,
                           @Nonnull GlobalSearchScope scope,
                           @Nullable IdFilter filter) {
    Project project = Objects.requireNonNull(scope.getProject());
    List<String> propertyKeys = ContainerUtil.map(
        SimpleUtil.findProperties(project), SimpleProperty::getKey);
    for (String key : propertyKeys) {
      if (!processor.test(key)) break;
    }
  }

  @Override
  public void processElementsWithName(@Nonnull String name,
                                      @Nonnull Predicate<NavigationItem> processor,
                                      @Nonnull FindSymbolParameters parameters) {
    List<NavigationItem> properties = ContainerUtil.map(
        SimpleUtil.findProperties(parameters.getProject(), name),
        property -> (NavigationItem) property);
    for (NavigationItem item : properties) {
      if (!processor.test(item)) break;
    }
  }

}

13.4. Register the Go To Symbol Contributor ​

The SimpleChooseByNameContributor implementation is registered with the Consulo by annotating the class with @ExtensionImpl. The base interface ChooseByNameContributor is annotated with @ExtensionAPI, so the Consulo discovers the implementation automatically.

13.5. Run the Project ​

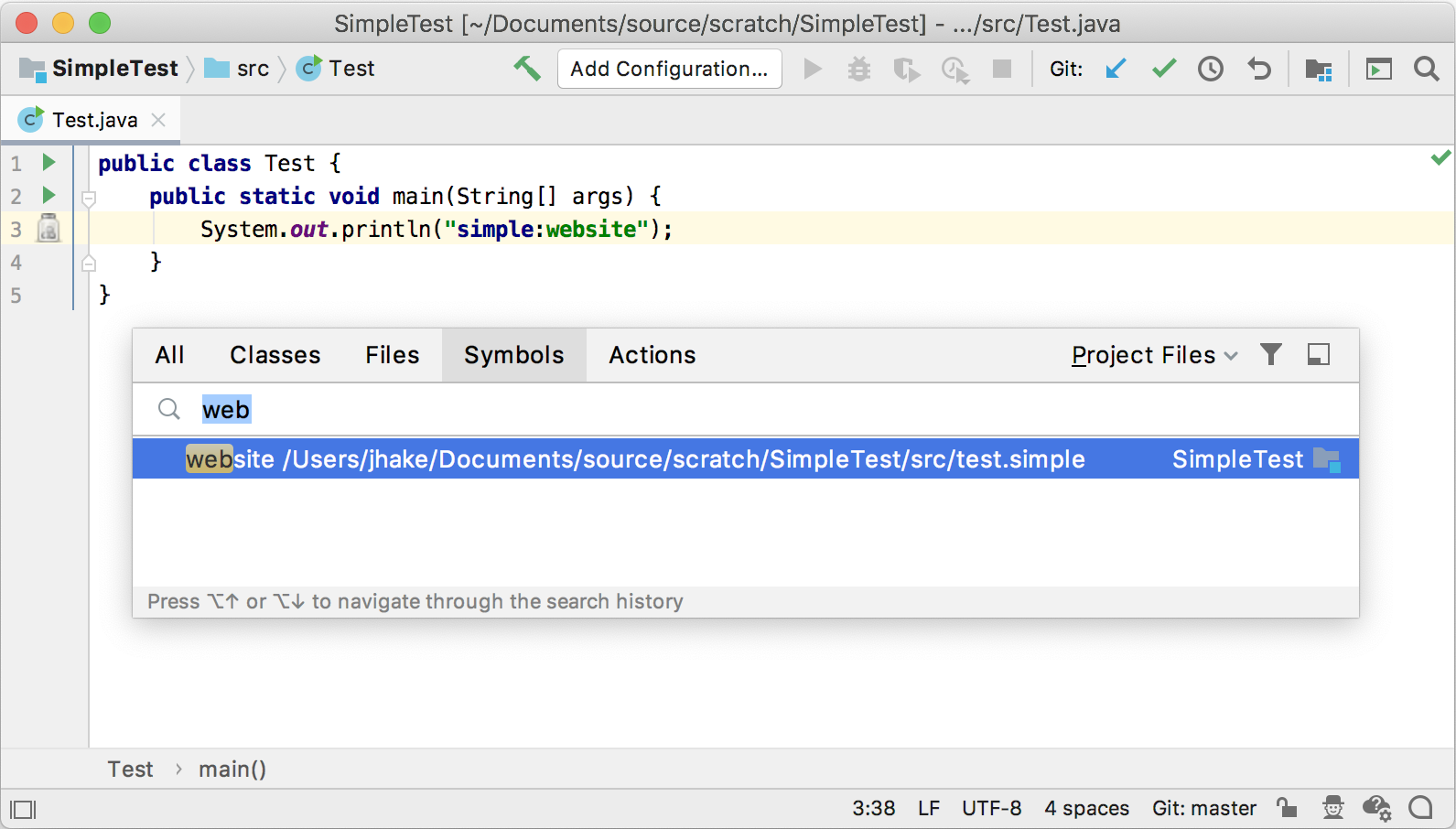

Rebuild the project, and run simple_language_plugin in a Development Instance. The IDE now supports navigating to a property definition by name pattern via Navigate | Symbol action.

Go To Symbol
