Icon File

Beginning in version 2019.1, the Consulo supports representing a plugin with a logo. A Plugin Logo is intended to be a unique representation of a plugin's functionality, technology, or company. Previously this page referred to Plugin Logos as Plugin Icons.

Note: icons and images used within a plugin have different requirements. See Working with Icons and Images for more information.

• bullet list {:toc}

Introduction

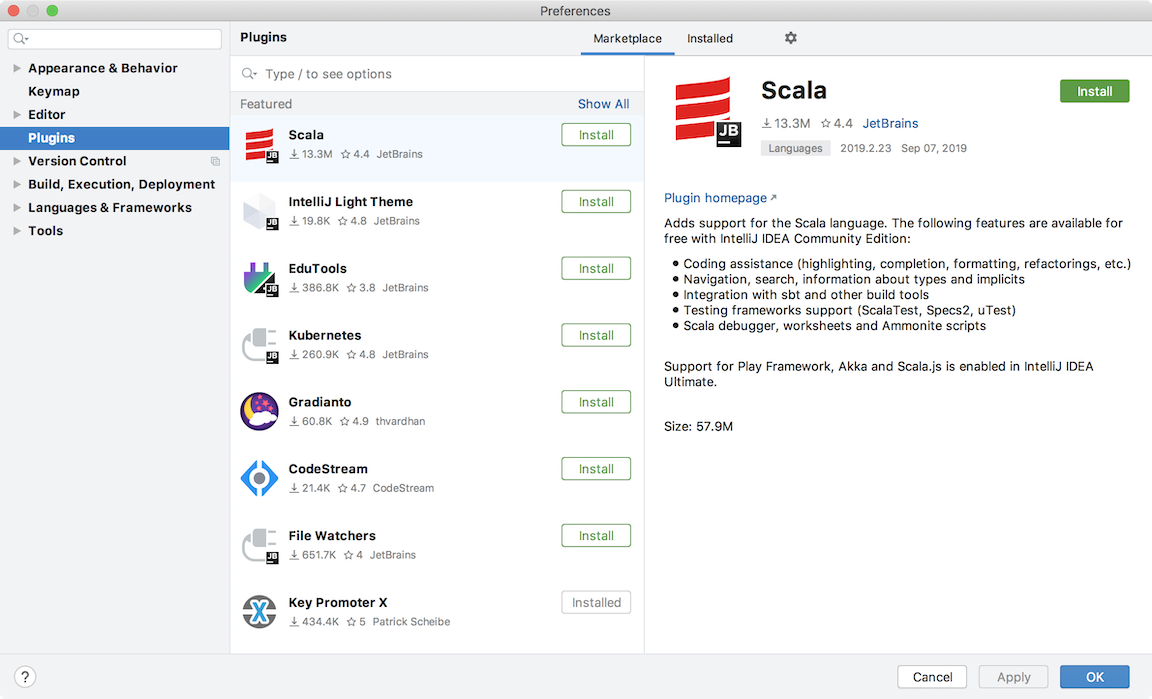

Plugin Logos are shown in the JetBrains Plugins Repository. They also appear in the Settings/Preferences Plugin Manager UI in Consulo-based IDEs. Whether online or in the product UI, a Plugin Logo helps users to identify a plugin more quickly in a list, as shown below:

{:width="800px"}

NOTE When browsing custom plugin repositories, there is no support for showing logos for plugins hosted there but not yet installed.

Plugin Logo Requirements

For a Plugin Logo to be displayed correctly within an Consulo-based IDE, it must: * Follow the best practices design guidelines, * Be in the correct file format, * Conform to file name conventions, * Be in the META-INF folder of the plugin distribution file.

Plugin Logo Size

The Plugin Logo should be provided in one size: 40px by 40px.

A Plugin Logo is displayed in two sizes, and scales automatically in each context: * 40px by 40px in the plugins list in the Plugin Manager UI. * 80px by 80px in the plugin details screen in the Plugin Manager UI, on the plugin's page in the Plugins Repository, and on MarketPlace.

Verify that Plugin Logo designs are effective in both sizes and all display contexts.

Plugin Logo Shape

Plugin Logo designs should leave at least 2px transparent padding around the perimeter, as shown below:

{:width="225px"}

Make sure Plugin Logos have the same visual weight as the logos in the examples below. The more filled a Plugin Logo design is, the less actual space it needs. See more examples of visual weight compensation in the Consulo UI Guidelines for Icons.

For basic shapes, use the following sizes. Note the different areas of transparent padding used for each shape:

{:width="225px"}	{:width="225px"}
Square logo 32px by 32px	Circular logo 36px in diameter
{:width="225px"}	{:width="225px"}

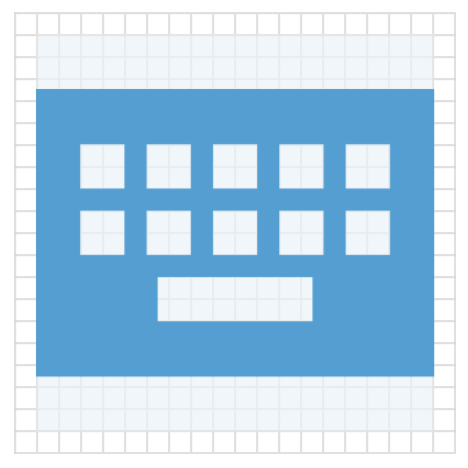

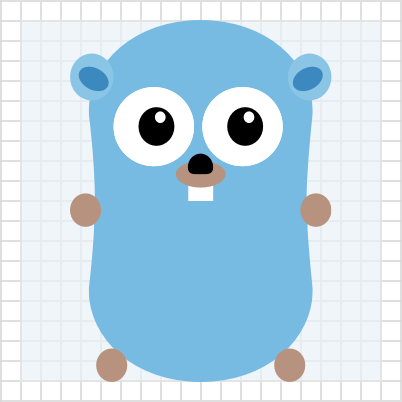

Horizontal rectangular logo 36px by 26px	Vertical rectangular logo 26px by 36px

Plugin Logo Colors

If the plugin's technology already has a logo, use its colors. Check the license terms before using the logo. If there is no existing logo, or its use is prohibited, create a custom logo based on the Action Colors Palette in the Consulo UI Guidelines for Icons.

{:height="200px" width="200px"}	{:height="200px" width="200px"}
The YouTrack Plugin Logo uses the YouTrack product logo	The Keymap Plugin Logo uses a color from the Action Colors Palette

Ensure a Plugin Logo is visible on both light and dark backgrounds. If one Plugin Logo design does not work on both light and dark backgrounds, create separate light and dark versions of the Plugin Logo. The examples below illustrate how a Plugin Logo design may work well for a light background but not for a dark background. Consequently, a separate Plugin Logo for dark backgrounds is needed.

{:width="225px"}	{:width="225px"}	{:width="225px"}
The light Plugin Logo design works well on light UI Theme	The light Plugin Logo design does not work well on a dark UI Theme	A separate, dark Plugin Logo design works well on dark UI Theme

Plugin Logo File Format

All Plugin Logo images must be SVG format. This vector image format is required because the Plugin Logo file must be small, and the image must scale without any loss of quality.

Plugin Logo File Naming Convention

Name the Plugin Logo files according to the following conventions: * pluginIcon.svg is the default Plugin Logo. If a separate Logo file for dark UI Themes exists in the plugin, then this file is used solely for light UI Themes, * pluginIcon_dark.svg is an optional, alternative Plugin Logo for use solely with dark IDE UI Themes.

Adding Plugin Logo Files to a Plugin Project

The Plugin Logo files must be in the META-INF folder of the plugin distribution file, i.e., the *.jar or *.zip file you upload to the plugin repository and install into a JetBrains IDE.

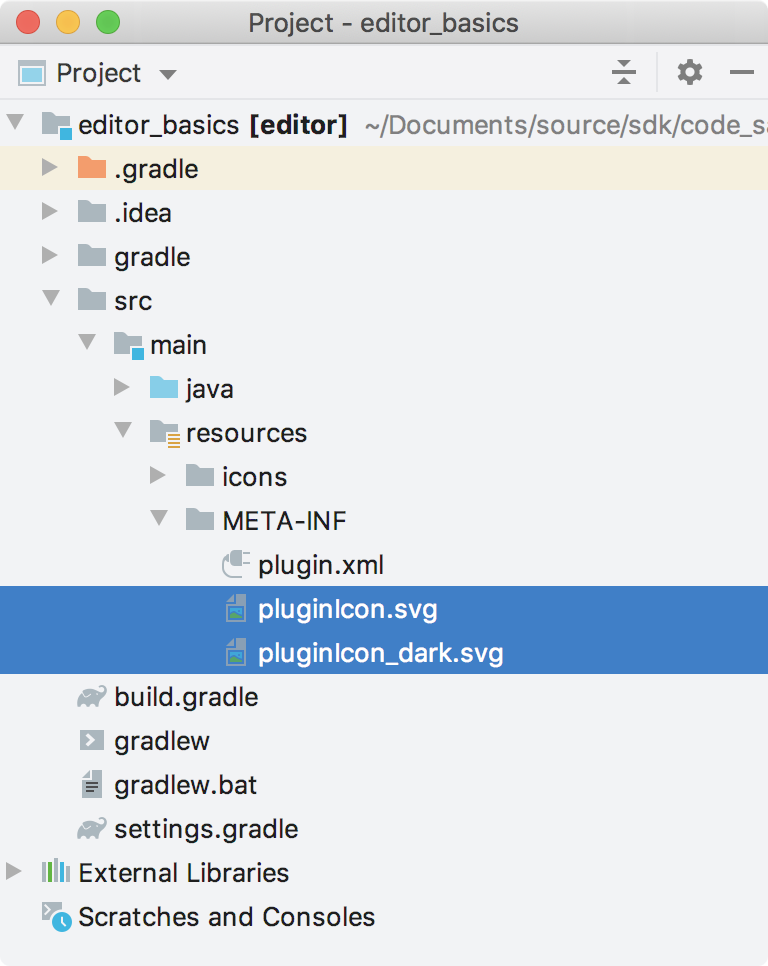

To include Plugin Logo files in your distribution file, place the Plugin Logo files into a plugin project's resources/META-INF folder. Note that this requirement is the same regardless of using DevKit or Gradle for developing a plugin. For example:

{:width="450px"}
